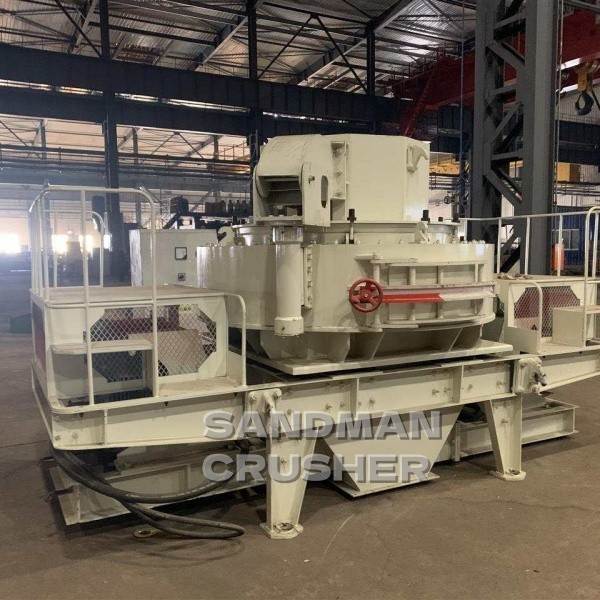

VSI Series Vsi Sand Making Machine

【Capacity100--250 tons per hour
【Input size】 2''--5''
【Output size】0--1/4''
【Power system】Motor
【Applicable materials】rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, road and railway construction, metallurgy, water conservancy, and chemical industry.
【Price】$1000--$100000USD

VSI SAND MAKING MACHINE INTRODUCTION

The sand-making machine is a special and efficient equipment for making various kinds of sand from hard stone.

VSI sand-making machine(VSI crusher) is the latest successful crushing machine with internationally advanced technology. Many years of technology accumulation and modern processing equipment ensure the leading position of the VSI crusher in this industry. Excellent cost performance and reliability make the VSI crusher outstanding in similar products. VSI crusher is the perfect combination of the latest research result of Germany and Chinese present working conditions. It is currently the exclusive production sand making machine with the worlds advanced level. VSI crusher is suitable for crushing and shaping soft or middle-hard or extremely hard materials, widely applied to pebble, rocks (limestone, granite, basalt, dolerite, andesite), iron ore tailing, artificial sand making of stone chips. It is also applied to water conservancy and hydropower of engineering field, high-grade highways, expressway and railway, passenger railway, bridge, airport pavement, municipal engineering, sand manufacturing and aggregated rock shaping.

VSI Impact Sand maker is called as VSI Sand Maker for short, also called as The Third Generation Sand Maker or New-type Sand Maker. Senya introduced German technology, developed and manufactured this international level high performance new-type sand making equipment; it places an irreplaceable role in fine crushing.

STANDARD FEATURES

★ Simple and reasonable structure, low cost

★ High crushing ratio, energy saving

★ Fine crushing and grinding

★ The moisture content of raw materials can reach about 8%

★ Suitable for crushing hard materials

★ Excellent finished product particle shape

★ Small wear and easy maintenance

★ Noise is less than 75dB during operation

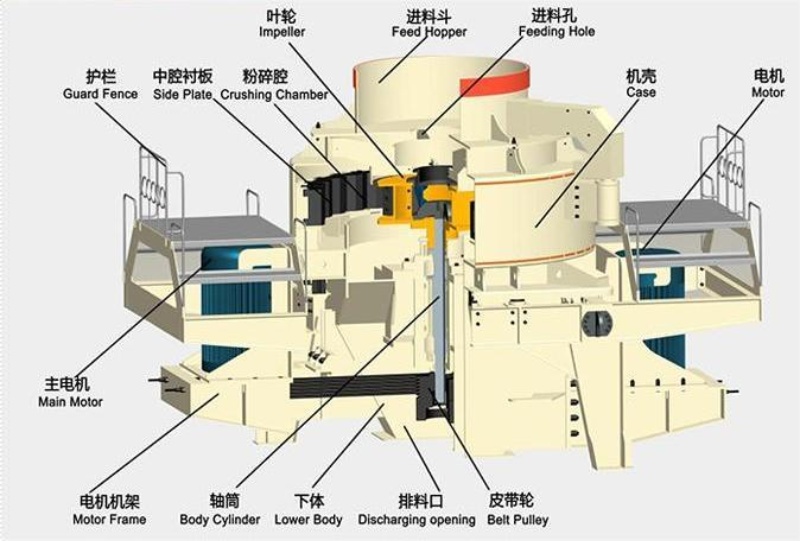

HOW VSI SAND MAKING MACHINE WORKS

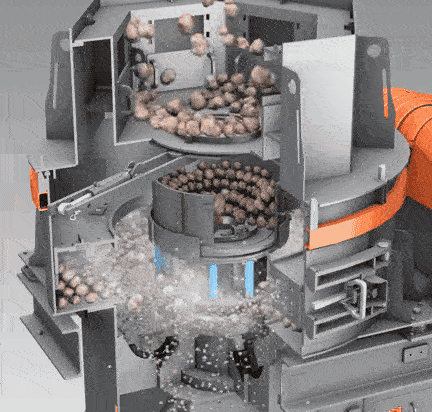

VSI sand making machine uses high-speed rotating materials to break each other and friction between materials (stone strike stone). When working, the material enters the crushing chamber of VSI sand making machine vertically from the upper part. Under the centrifugal force of high-speed rotating impeller, the material interacts and collides with each other.

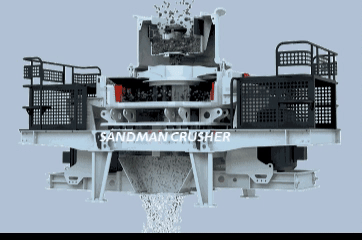

A VSI (or Vertical Shaft Impactor) crusher works by accelerating material into a crushing chamber where it is then impacted by a high-speed rotor. The rotor is fed from above and throws the material against fixed anvils within the crushing chamber. The material is then broken down into smaller pieces and falls through the bottom of the chamber.

1. Central feed: the raw materials fall into the feed hopper of the VSI sand making machine and enter the impeller from the central feed port. The materials are thrown out at a speed of 60-75 m/s under the action of the high-speed impeller. It is crushed when it hits the impact plate, and the final product comes out of the discharge port.

2. Annular feeding: the raw materials fall into the hopper, and the special plate divides the materials into two parts. Part of the material enters the impeller of the sand making machine through the center of the plate, and another part of the material falls from the outside of the plate. The material thrown out earlier crushes the material from the outside, so that the material is crushed and then crushed.

The spindle motor drives the transmission part of the bearing barrel to rotate at a high speed, while the rotor rotates at a high speed. As the spindle makes materials that enter the impeller, after the impeller is injected into the crushing cavity at high speed, the crushed lining materials collide with each other and form in the CuoMo cavity, which converts kinetic energy into energy. To accelerate the receiving of materials, crushed or plastic materials need to be circulated in the surrounding gas for many times under the vortex of the surrounding gas and then the materials in the crushing cavity are circulated for many times. Glue crushing realizes continuous crushing and discharges from the lower part of the machine body to form the required finished material. The crushing method is "stone-on-rock". This model is mainly used for plastic and crushed stone.
