ZSW series vibrating grizzly feeder

AGGREGATE VIBRATING FEEDER INTRODUCTION

A vibrating grizzly feeder is a kind of linear-direction feeding equipment. The vibrating grizzly feeder is widely used to match the crushing and sieving equipment in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc . The Vibrating Feeder has been used to transfer large-size materials and granular materials from the hopper to the receiving device uniformly, periodically, and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line.

It is used to transfer the large size materials and granular materials from the hopper to the receiving device uniformly, periodically, and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. It is widely used to match the crushing and sieving equipment in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.

There are many different capacities of feeders, different capacities will be used on different machines.

Aggregate feeders transfer bulk aggregate materials to screens, hoppers, bins, and other equipment. Feeders are also used to meet the desired flow rates for aggregate processing or crushing systems. Often, bulk aggregate materials must be “activated” when being processed, or they will get stuck or cause jams. Thicker or wet materials require more vibration to keep them moving. Aggregate feeding equipment activates these trickier materials, allowing them to be processed continuously. The most efficient aggregate feeders will have a high continuous output while maintaining low power consumption. There are several different aggregate feeders, each with their use cases.

HOW A VIBRATING FEEDER WORKS

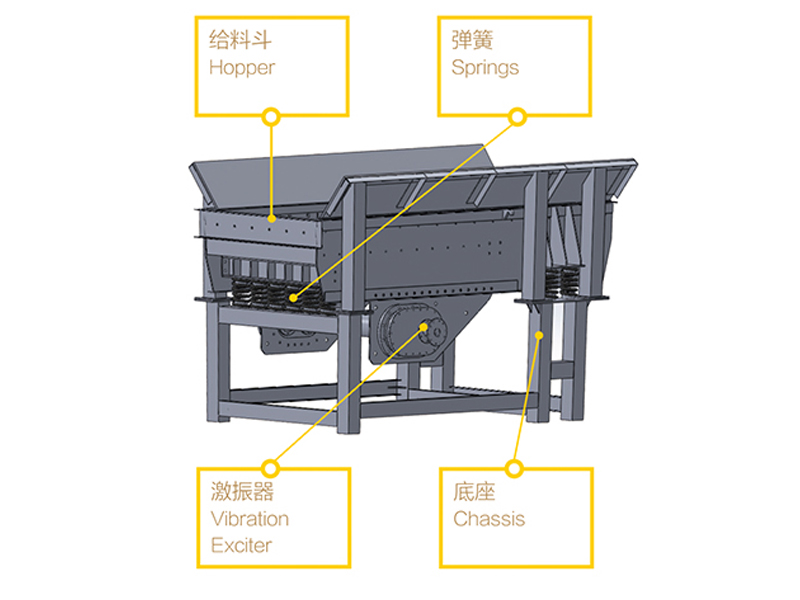

Vibrating feeder consists of a vibrating frame, spring, vibrator, motor, vibrating device, and motor. The vibrator consists of two eccentric shafts rotating at high speed simultaneously from opposite directions, forming a strong centrifugal force.

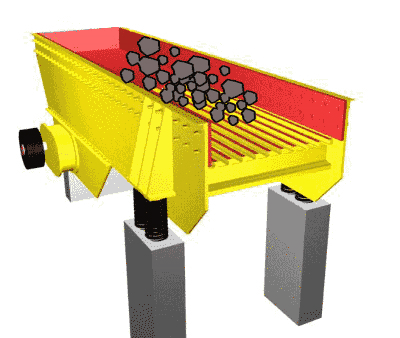

There are two eccentric shaft rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When material are fed into the vibrating feeder, they may be thrown up and move like para curve, then fall down.The material will move forward on the slope surface of the feeder.

During installation, the two gears must mesh according to the symbol, and the motor drives the two eccentric shafts to rotate, generating huge linear power, and forcing the feeder to vibrate. Under the action of vibration, the material slides and throws on the funnel and moves forward. When the material passes through the screening part, the smaller part falls to avoid further crushing, thus achieving the purpose of screening. Vibrating feeders can be used in the metallurgical industry, coal industry, mineral processing, construction, chemical industry, abrasive industry, and other fields.

STANDARD FEATURES

★The vibration motor is used as a vibration source, with low noise, low power consumption, good adjustment performance, and no material collision phenomenon.

★The exciting force can be adjusted at any time, the flow rate can be controlled and changed, and the adjustment is convenient and stable. Stable vibration, reliable operation, and long service life.

★Simple structure, reliable operation, easy installation and adjustment, lightweight, small size, and easy maintenance. ★Small amplitude, high frequency, and large inclination angle.

★The eccentric block is used, and the exciting force is strong. Tire coupling is used for flexible connection and stable operation.

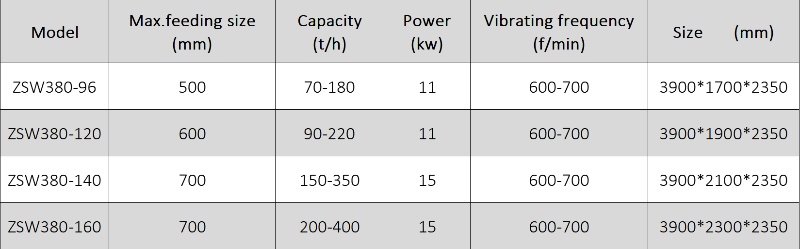

PARAMETER

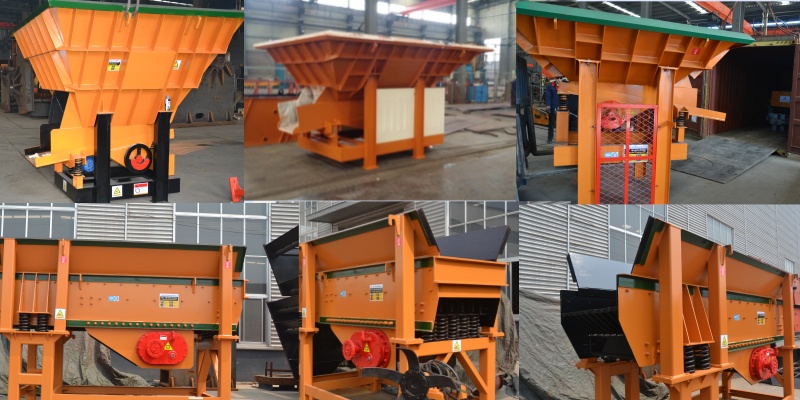

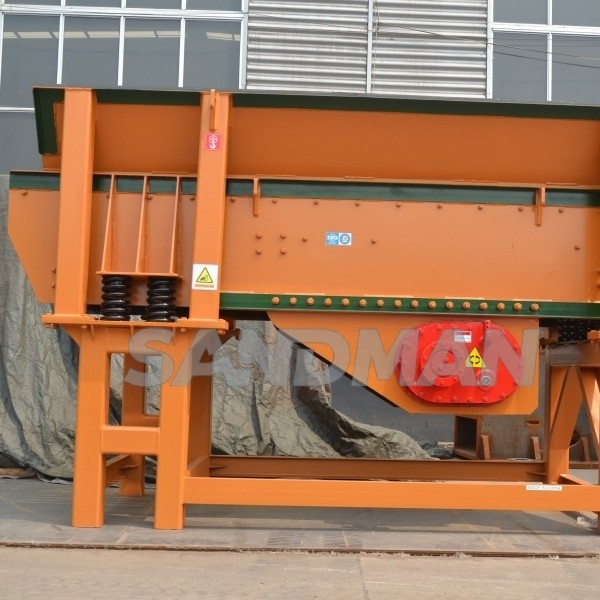

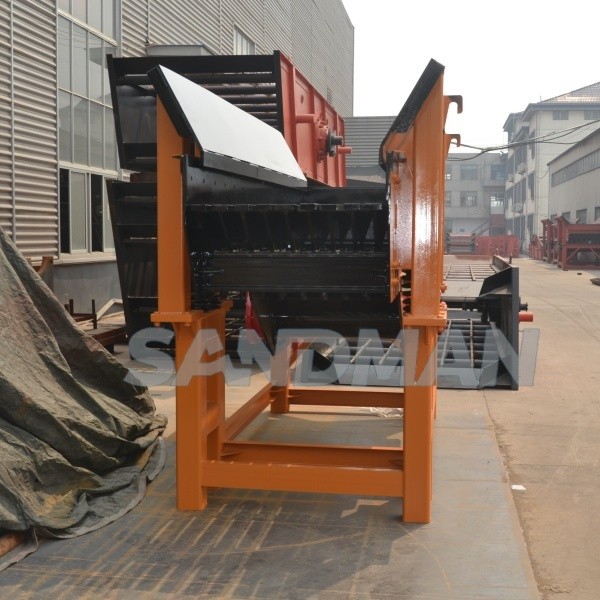

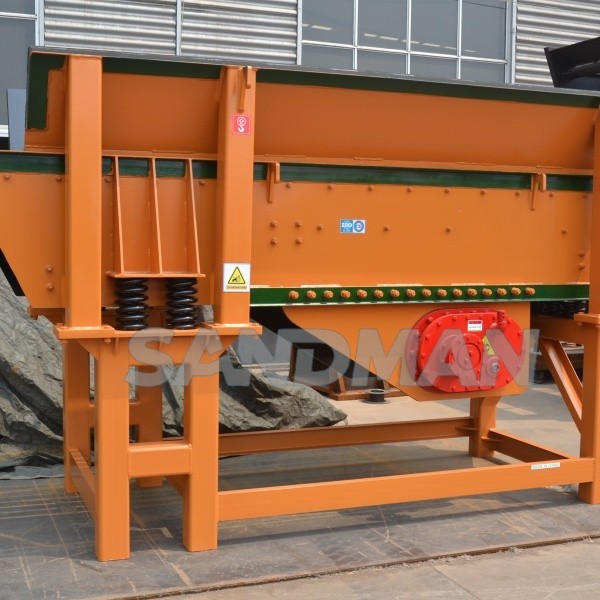

PICTURES SHOW

HOW TO CHOOSE THE SUITABLE MACHINE

To design a suitable machine, please let us know the following information:

1. what kind of stone do you want to crush? limestone? granite? Or others.

2. what's the size of your stone before crushing? how many inches or mm?

3. how big capacity do you need? 1t/h?10t/h?100t/h?

4. what are your requirements for the final product size? how many inches or mm? 0-5,5-10,10-20mm Or others?

5. Do you only need one set of crushers or a whole crushing line? (Include the feeder, crusher, screen, conveyor, and so on)

6. Do you need a mobile crushing machine or a stationary one?
