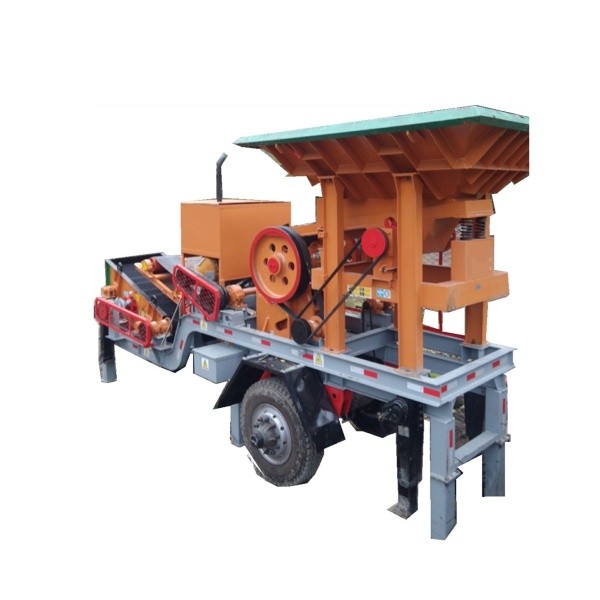

DSH2540 mini mobile jaw crusher

DSH2540 mini mobile jaw crusher Product Introduction

DSH2540 mini mobile jaw crusher has a feed size of 210mm, a discharge size of 0-10,10-20mm, and a production capacity of 8-35t/h. The final size can be 0-10,10-20mm (adjustable). It is mainly used in quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, metallurgy and chemical industries. The crusher can be used to crush various ore, waste rock, construction waste, mudstone and other materials.

Mobile Stone Crushing Station incorporates all the equipment together on one truck, which has high chassis, narrower body compared with other trucks, this ensure the crushing plant be easily transported on highways and moved to crushing sites, so it is able to achieve on site crushing without material transporting from one place to another place. In addition, the lengthened plant is able to transport the final products to the motor lorry directly. The mobile rock crusher can start to work soon even in the bumpy ground without installation, so it saves more time and money than fixed crushing plant which needs to install individual equipment one by one.

The machine is mainly composed of: hopper feeder, Diesel engine, Jaw crusher, Belt, vibrating screen, mobile chassis.

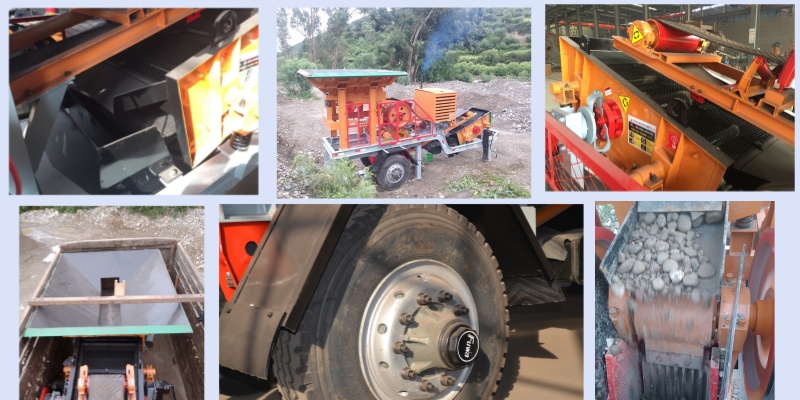

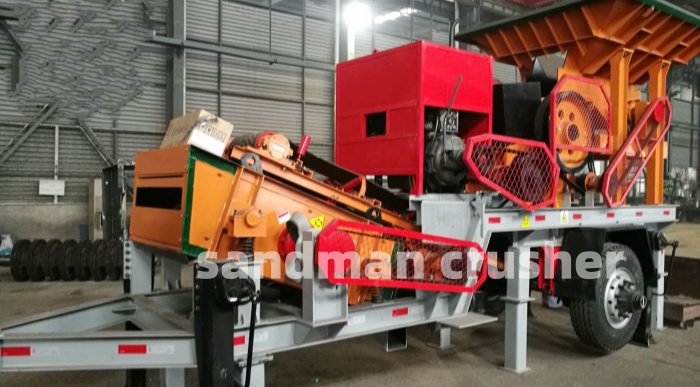

DSH2540 mini mobile jaw crusher Product Display

DSH2540 mini mobile jaw crusher working principle

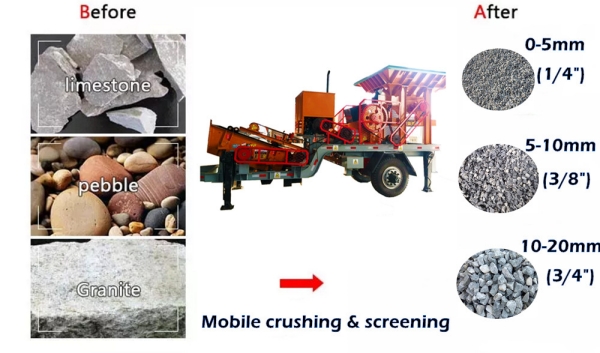

The diesel engine drives the eccentric shaft of the jaw crusher through the triangular belt and the trough wheel to make the jaw crusher move reciprocally, so as to crush the material entering the crushing chamber. The crushed stones will go into the vibrating screen to sieve out into different sizes. These final aggregates size can be changed according to clients request, such as 0-5-10-20mm, different final size will be different capacity.

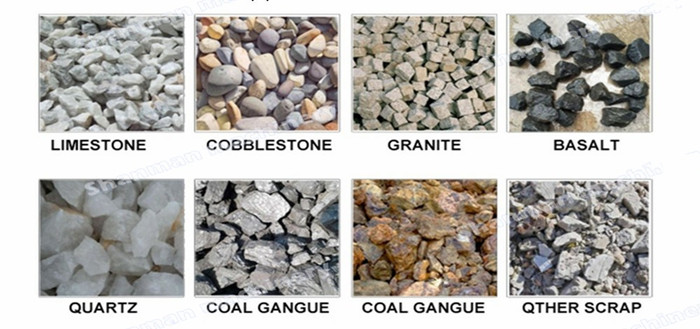

DSH2540 mini mobile jaw crusher Applicable Material

1.The machine is simple in structure, reliable in work, easy to use and maintain, mainly used in mining, quarry building materials and other departments where electricity is inconvenient, coarse and medium crushing various kinds of ores or rocks with strength below 250Mpa.

2.Stone field: crushable materials include river pebbles, pebbles, granite, basalt, marble, limestone, stone, limestone, and other materials with a hardness of not more than 320 MPa;

3.Orefield: crushable ore includes gold and silver ore, lead-zinc ore, limonite, hematite, manganese ore, copper ore, rare earth ore, and other non-ferrous metals, ferrous metals, and precious metals.

This Mobile Stone Crushing Station provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
This Mobile Stone Crushing Station can work independently or together with other devices according to coarse crushing or fine crushing requirements. Side discharging chute supports more screening and transporting ways.

DSH2540 mini mobile jaw crusher Advantages

1.Diesel engine power, no need electric.

2.You can use it directly after put into diesel. Easy operation.

3.Combined with crushing and screening.

4. Easy moving with tires.

5. Famous brand generator.

6.Simple structure, easy maintenance

7.High crushing ratio, even output granularity

8.High reliability, low investment

9.Low noise, less dust.

10.Jaw crusher have flexible capacity, you can adjust the output size from 20mm to 80mm to meet your own final aggregates size requirement.

Advantages about mobile stone crusher plant

1. Classic mobile stone crusher is formed by a combination of several units. This causes loss of time and labor force loss.
2. New generation mobile crushing plants are designed all equipment are collected in a single platform. It can be ready for use within 1 hour and installation of plant completed, can be transported within 1 hour. 3. Through compact design, the installation can be in small spaces, without concrete foundation, getting rid of both cost and concrete. 4. When mobile stone crusher is moving or installed, the hydraulic legs are controlled to be up or down with a pressure control valve, which is more convenient. 5. It can be transported on single truck to provide ease of transportation. 6. It can be controlled by a single staff, provides operational convenience. 7. Both the generator and the electrical system can work with. Low fuel spend. 8. The above crusher can also place on the mobile crawler platform , then it have the ability to move itself .

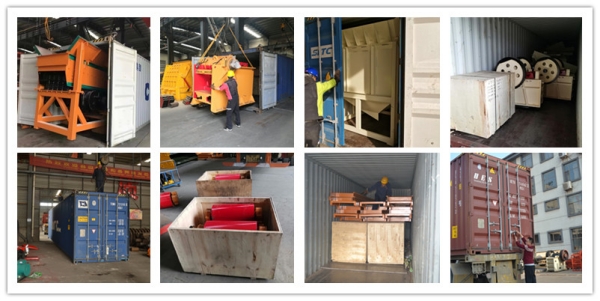

Packing & shipping

Questions you may have

Q: Are you mining machinery manufacturer?
A: Yes, we are manufacturer, we warmly welcome clients to visit our factory at anytime. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc...

Q: how to choose the suitable machine?
A: To design a suitable machine, please let me know the following information:

1. what kind of stone do you want to crush ? like limestone ? or granite ?

2. what's the size of your stone before crush ? how many inch or mm ?

3. how big capacity do you need?2t/h?10t/h?100t/h?

4. what's your requirements of final product size ? how many inches or mm ?0-5mm?5-20mm? Or others?

5. you only need one set of crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)

6. You need mobile crushing machine or stationary one?

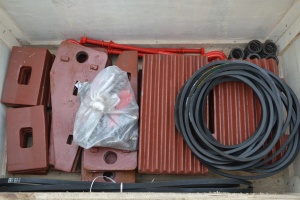

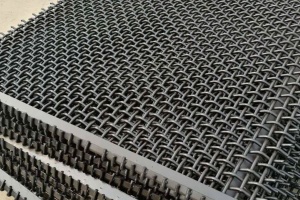

Q: How long is the warranty of your machine? Does your company supply the spare parts?A: the warranty period is one year. we will supply the spare parts for you any time.

Q: If I buy a complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advice. We had already build many mining projects in China & Overseas.

Q: how about the installation?

A: Supplier provides a full set of installation drawings and instructions. If the buyer need supplier do the installation, supplier will provide technical engineers to guide the installation, and train buyer' workers. Buyer should take the charges for technicians and pay them salary.


Q: what is the payment Method?
A: By T/T, L/C,  Western Union, Money Gram, and so on.

Choose The Right Model

To design a suitable machine, please let us know the following information:

1. what kind of stone do you want to crush? limestone? granite? Or others.

2. what's the size of your stone before crush? how many inches or mm?

3. how big capacity do you need? 1t/h?10t/h?100t/h?

4. what are your requirements for the final product size? how many inches or mm? 0-5,5-10,10-20mm Or others?

5. Do you only need one set of crushers or a whole crushing line? (Include the feeder, crusher, screen, conveyor, and so on)

6. You need a mobile crushing machine or a stationary one?
