Basalt stone solution

Basalt stone crushing solution

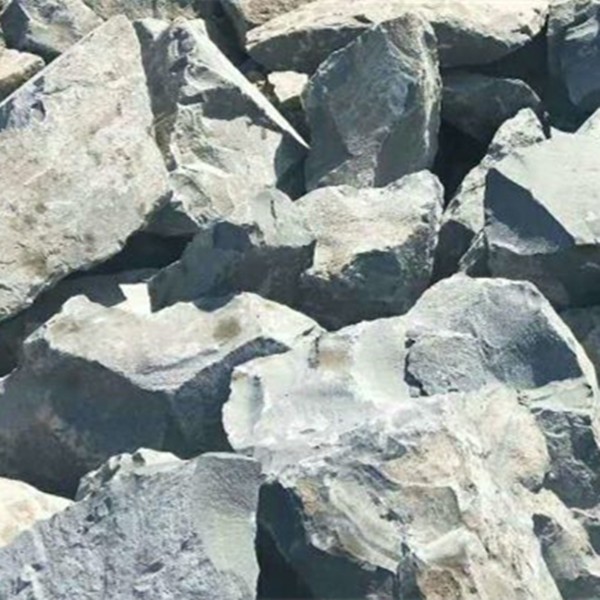

Basalt characteristics

Basalt, the main component of oceanic crust, is a basic volcanic rock. Basalt has the advantages of strong compression resistance, low crushing value, strong corrosion-resistance, and good asphalt adhesion. It has been recognized internationally as a good material for the construction of roads, railways, and airport runways. Not only that, but basalt is also a high-quality aggregate of lightweight concrete for high-rise buildings. Because of its pores and hardness, mixing it into concrete can reduce the weight of the concrete without losing its strength. It also has sound insulation, The advantages of heat insulation, etc., are favored by major building materials markets.

Basalt crushing production line process

The processing of basalt is divided into three stages: coarse crushing by jaw crusher, medium and fine crushing by cone crusher, and sand making and shaping by sand making machine.

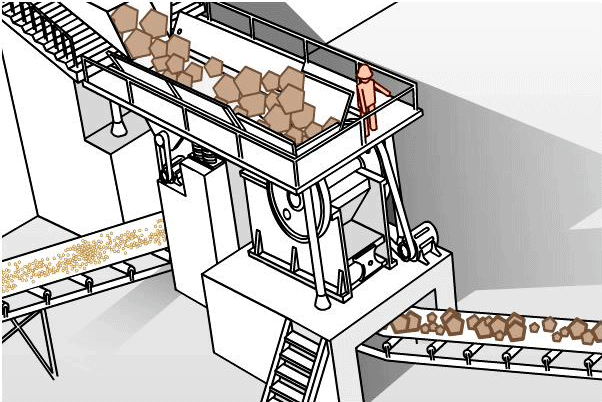

The first stage: coarse crushing

Large basalt materials are uniformly fed by the vibrating feeder through the silo and then transported to the jaw crusher for coarse crushing. After the coarsely crushed materials are screened by the vibrating screen, they are transported by the belt conveyor to the cone crusher for medium and fine crushing.

The second stage: medium and fine crushing

The basalt transported to the cone crusher is finely crushed and then screened by a circular vibrating screen. The material larger than or equal to 40mm is returned to the cone crusher for crushing again.

The third stage: sand making

After crushing, the basalt particles smaller than 40mm are sent to the sand-making machine for further crushing and shaping, and the materials larger than or equal to 20mm are returned to the sand-making machine for fine crushing again. Materials smaller than 20mm are sent to the circular vibrating screen for screening and packaging. If clean basalt is required, it can be sent to the sand washing machine for cleaning.

Technical Description:

1. This flowchart is for reference only.

2. The actual construction should be adjusted according to the terrain.

3. The mud content of the material should not exceed 10%. The mud content will have an important impact on the output, equipment, and process.

4. Shanman can provide process plan and technical support according to the actual requirements of custom
